Item description from the seller



  • Electric Lift with rechargeable Battery (110v Household power cord)
  • 2 Function controls one on the lift and second one with remote on the platform
  • Adjustable supporting legs with pin locking mechanism
  • Raised Platform Height is 15-3/4 ft (189 in)
  • Built in step for entrance
  • Auto door shut mechanism
  • Built in forking slots for forking
  • Built for easy maneuvering
  • 660 LBS LOAD CAPACITY
  • It is not a self-propelled scissor lift
  • Overall Height (raised with rails) is 19 ft (228-1/3 in)
  • The highest height a person can reach while standing on the platform is 22-1/3 ft (267-2/3 in)



IMPORTANT BATTERY CHARGING NOTE: The battery must be charged within 3 months of storage to prevent self-discharge. If the battery is not charged within 3 months of storage, permanent loss of capacity may occur. If the powered product is going to be stored and/or not in regular use, the batteries must go through a full charge cycle every month to ensure battery life and duty cycle.





ItemSemi-Electric Access Lifts
Loading Capacity660 lb
Raised Platform Height15-3/4 ft (189 in)
Lowered Platform Height31-4/5 in
Raised Working Height22-1/3 ft (267-2/3 in)
Ground Clearance2 in
Platform Length46 in
Platform Width23-1/2 in
Wheel Configuration(2) Swivel with Brake, (2) Rigid
WHEEL TYPEPolyurethane
Caster Diameter8 in
Caster Width2 in
Lifting Motor0.8 Kw
Battery12V/72Ah
Item Weight870 lb
Overall Dimension (stowed with rails)50 x 28 x 71 in
Overall Height (raised with rails)19 ft (228-1/3 in)

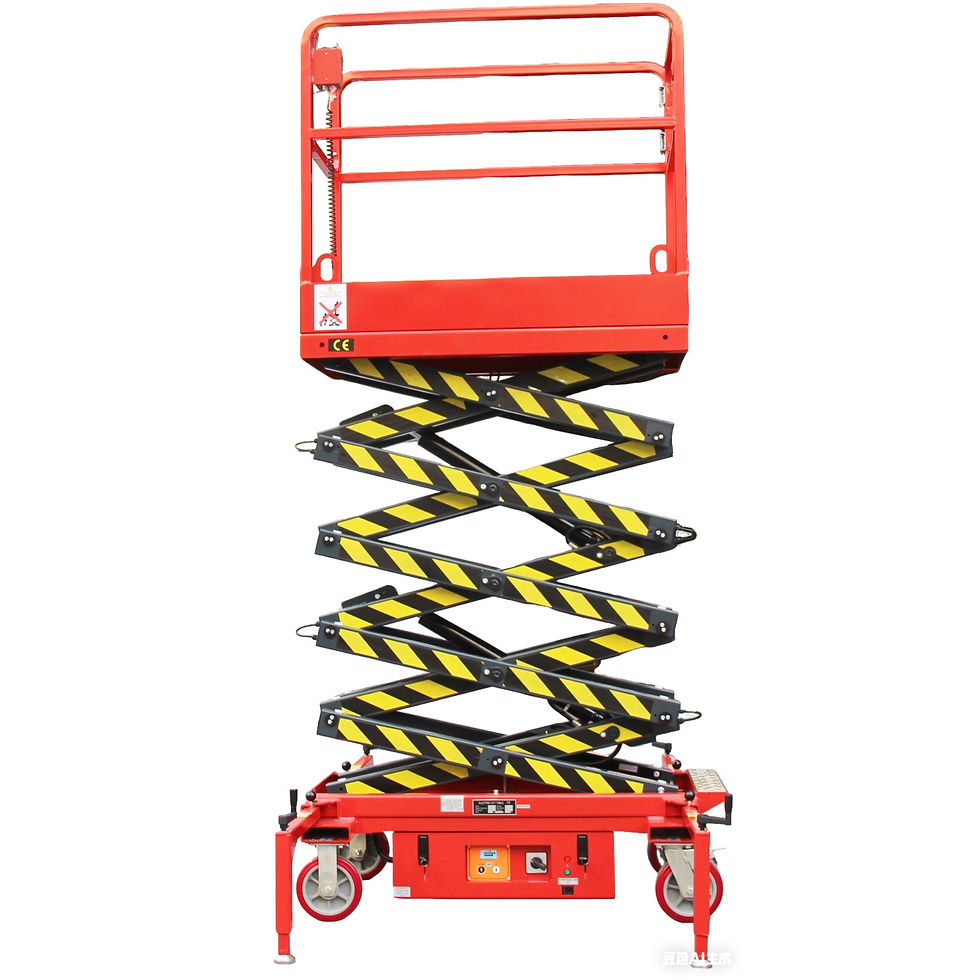

19 FEET MAX LIFT ELECTRIC SCISSOR LIFT MAN LIFT 660 lb Cap.

SKU: PAKSL-SJY0348
$3,800.00Price
