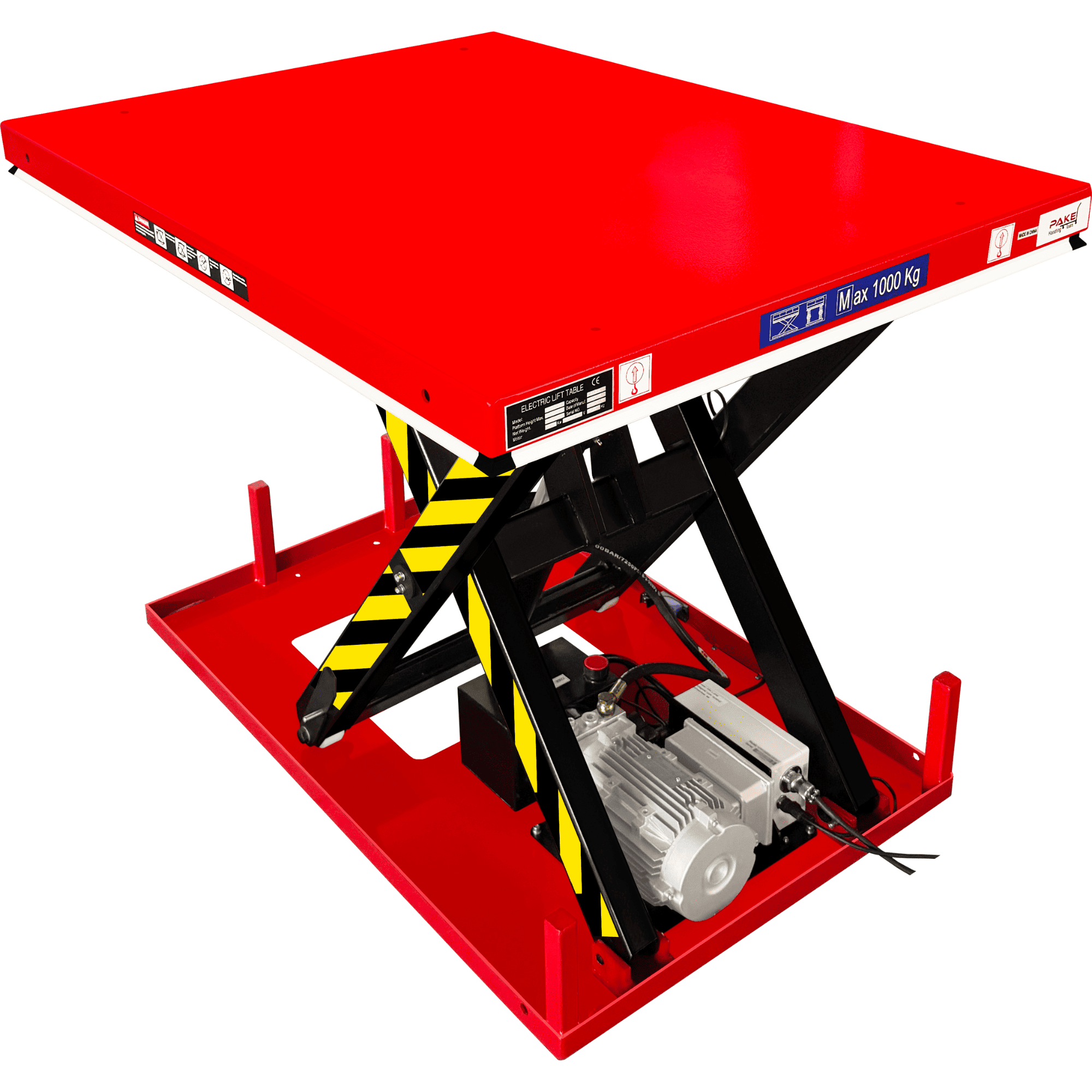

The Pake Handling Tools electric hydraulic scissor lift table with hand control is a cost effective solution for helping to reduce worker strain in the warehouse. The lift table is designed to promote employee safety by lifting loads to a comfortable working height. The lift comes with thicker and wider than average scissors to support heavy-duty use. Hand-held push button pendant control with an 8 foot cord comes standard. Powerful 110V 1-phase motor and pump assembly offer years of easy functionality. Captured rollers reduce the risk of injury. Chip -resistant powder coat finish. 1-Year Limited Warranty.


Features About This Item
1. Hydraulic scissor lift table with electric motor for lifting and lowering heavy materials
2. Red powder-coated steel frame for resistance to wear and corrosion
3. 2,200 lb. load capacity with 48" x 36" platform
4. Service range of 9.5" to 36.25"
5. Canadian CAS certified motor, Phase 1, Duty S1 (CONT Continuous Duty), 2 HP, 110 V, 60 Hz
6. Hand control with an 8 foot cord and aviation plug comes standard (Optional Foot Pedal Control And Wireless Control Can Be Ordered From Our Factory)
7. Four-sided electric toe-guard is designed to promote employee safety
8. Build-in electric toe-guard wire is designed to prevent cut during operation
9. Hydraulic pump station contains a fan and a temperature sensor controller to improve stability
10. Mechanical explosion-proof hydraulic Cylinder (Electromagnetic Explosion-Proof Cylinder Can Be Ordered From Our Factory)
11. All electrical equipment's enclosure rating is higher than IP54
12. The bending steel base instead of welding provides reliable heavy-duty user

13. The lift comes with scissors which is thicker and wider than average to support loads



Product Details

Load Capacity2,200 lb
Lift MechanismHydraulic
Platform Length48 in
Platform Width36 in
Lift Table Platform StyleFixed
Lift Voltage110V
Up Speed Seconds20~25
Frame MaterialSteel
IncludesControl Cord; Hand Control;Molded Edge Platform; Power Cord
Lifting Height Max.36.25 in
Lifting Height Min.9.5 in
Country of OriginChina

Electric Hydraulic Scissor Lift Table, 2,200 lb. Capacity, 48" x 36" Platform

$2,965.99 Regular Price
$2,500.00Sale Price
