The Pake Handling Tools electric hydraulic scissor lift table with hand control is a cost effective solution for helping to reduce worker strain in the warehouse. The lift table is designed to promote employee safety by lifting loads to a comfortable working height. The lift comes with thicker and wider than average scissors to support heavy-duty use. Hand-held push button pendant control with an 8 foot cord comes standard. Powerful 110V 1-phase motor and pump assembly offer years of easy functionality. Captured rollers reduce the risk of injury. Chip -resistant powder coat finish. 1-Year Limited Warranty.



Features About This Item

1. Hydraulic scissor lift table with electric motor for lifting and lowering heavy materials, 2,200 lb. load capacity with 51" x 32-1/4" platform, Service range of 8" to 39"

2. Red powder-coated steel frame for resistance to wear and corrosion

3. Canadian CAS certified motor, Phase 1, Duty S1 (CONT Continuous Duty), 1.5 HP, 110 V, 60 Hz

4. Hand control with an 8 foot cord and aviation plug comes standard (Optional Foot Pedal Control And Wireless Control Can Be Ordered From Our Factory)
5. Four-sided electric toe-guard is designed to promote employee safety. Build-in electric toe-guard wire is designed to prevent cut during operation

6. Hydraulic pump station contains a fan and a temperature sensor controller to improve stability

7. Mechanical explosion-proof hydraulic Cylinder (Electromagnetic Explosion-Proof Cylinder Can Be Ordered From Our Factory)





Product Details

Load Capacity

2,200 lb

Lift Mechanism

Hydraulic

Phase

1

Platform Length

51 in

Platform Width

32-1/4 in

Lift Table Platform Style

Fixed

Lift Voltage

110V

Up Speed Seconds

2025

Frame Material

Steel

HP

1.5

Includes

Control Cord; Hand Control; Molded Edge Platform; Power Cord

Lifting Height Max.

39 in

Lifting Height Min.

8 in

Country of Origin

China

Package size

53x34x14 in

Net weight

352 lbs.

Shipping Weight

418 lbs

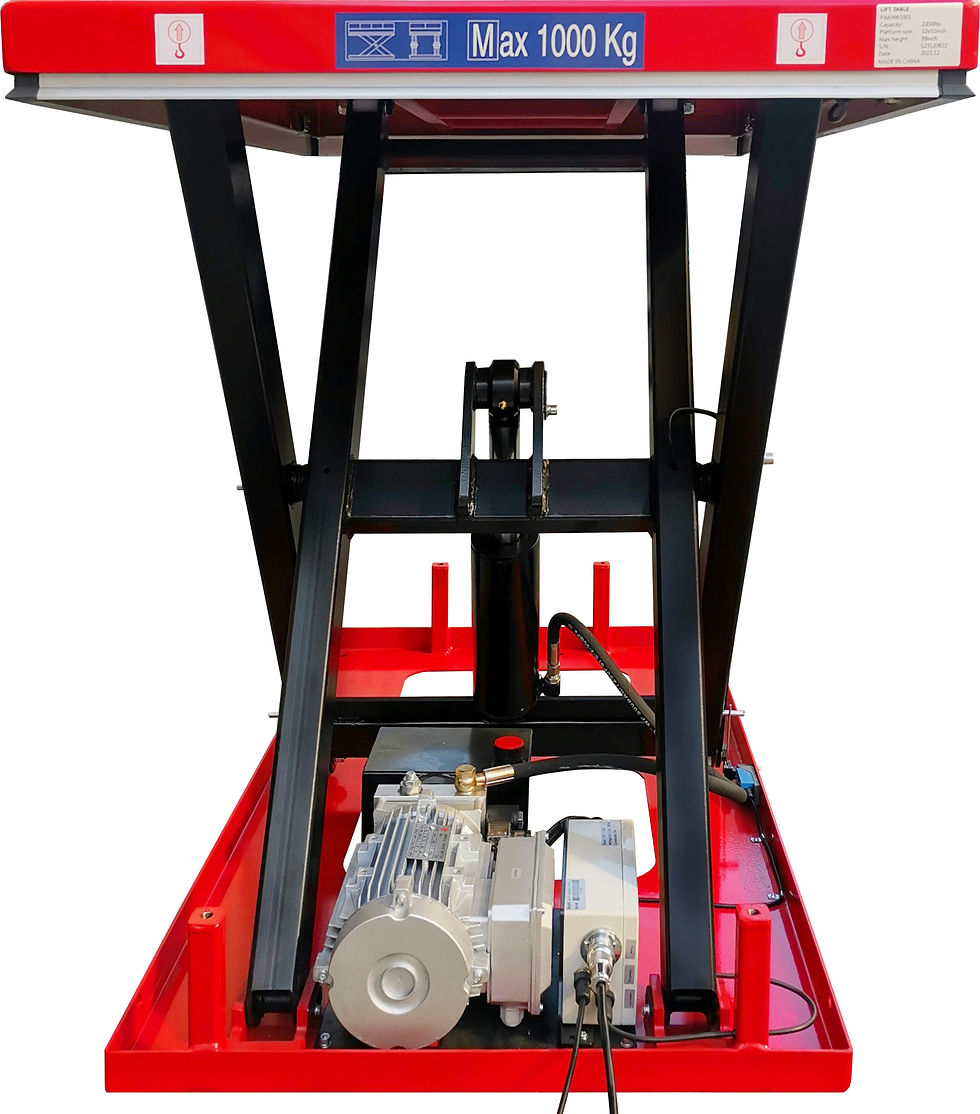

Electric Hydraulic Scissor Lift Table, 2,200 lb. Capacity, 51" x 32-1/4"

SKU: PAKHW1001
$2,893.99 Regular Price
$2,200.00Sale Price
