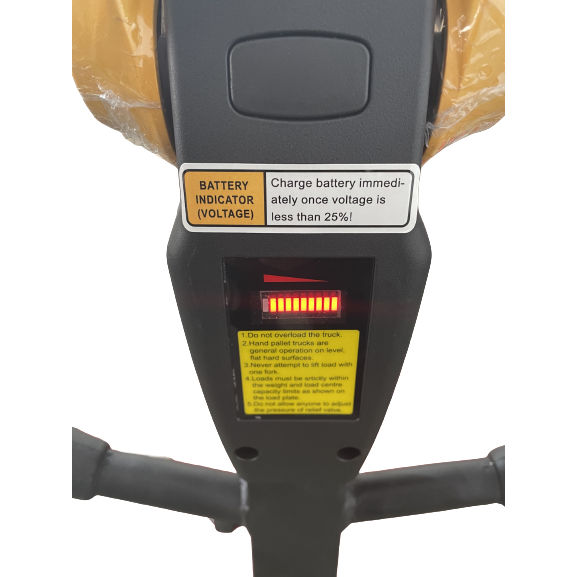

Features 1 KW drive and 0.8 KW lift motors, 3" lowered and 7-2/3" raised heights. PAKE Electric Pallet Jack offers a minimum of 6-8 hours service per charge. 48V DC MOSFET control with high-torque permanent magnet drive motor is designed for industrial use. Ergonomic handle features dual butterfly thumb controls with infinite forward and reverse speeds, lift/lower controls, safety belly reverse button, and horn. Automatic Safety release braking system increases operator and facility safety.  Both sides with balance wheel to ensure smooth walkingwhether laden or unladen. Reinforced 6" welded forks for years of service. Includes battery, integral battery charger, battery level gauge and emergency battery disconnect. Rolls smoothly on 6-1/3" polyurethane steer and 2-3/4" load wheels. Capacity load and design for ease of use for heavy weight and oversize loads.

4400lbs capacity load and fork size 48" x27" design for ease of use for heavy weight and oversize loads
Ergonomic handle and control design reduce strain on operator
Infinite speed, lift/lower & safety belly reverse controls provide ease of operation managing large or heavy loads
Safety belly reverse button provide ease of operation and control for large or heavy loads
Polyurethane steer and load wheels are excellent for use in tight quarters
Variable speed operation increases productivity in large facilities
Automatic Safety release braking system increases operator and facility safety
8-10 Hours Charging Time, 6-8 Hours Working Time

IMPORTANT BATTERY CHARGING NOTE: The battery must be charged within 3 months of storage to prevent self-discharge. If the battery is not charged within 3 months of storage, permanent loss of capacity may occur. If the powered product is going to be stored and/or not in regular use, the batteries must go through a full charge cycle every month to ensure battery life and duty cycle.

Rated Capacity
4400 Lbs
A--Min.Fork height
3 in
B--Max.Fork height
7-2/3 in
S--Fork Length
48 in
C--Fork Overall Width
27 in
R--Turning Radius
62-4/25 in
D--Single Fork Width
6-1/3 in
E--Overall Height
47 in
F--Overall Length
68-6/7 in
C--Overall Width
27 in
W--Front Roller
Ø2-3/4 x 3-2/3 in
H--Driving Wheel
Ø6-1/3 x 2-1/3 in
Travel Speed（Load/Unload)
2.5 / 2.8 mph
Drive motor
1kw
Lifting motor
0.8kw
Brake
Electric-magnetic
V/Ah
48V-DC／20Ah

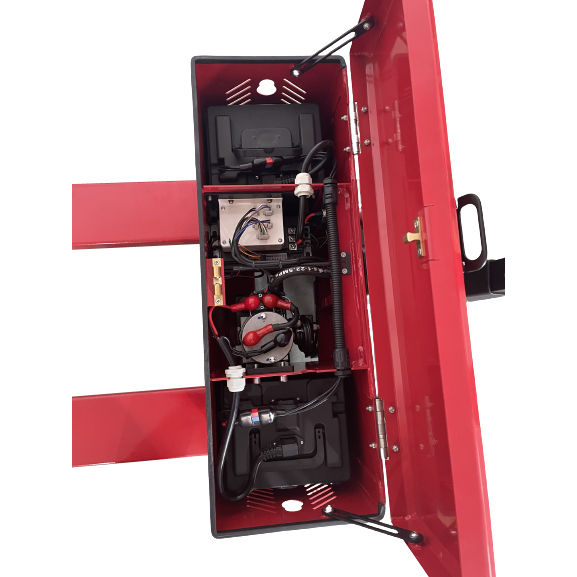

Battery
(2) 24V 20Ah Maintenance Free
Type of drive control
MOSFET Control
Sound level at driver’s ears
<70dB(A)
Net Weight
454 Lbs
Shipping Weight
524 Lbs
Shipping Dimensions
72 x 30 x 31 in
