The Pake Handling Tools electric hydraulic scissor lift table with hand control is a cost effective solution for helping to reduce worker strain in the warehouse. The lift table is designed to promote employee safety by lifting loads to a comfortable working height. The lift comes with thicker and wider than average scissors to support heavy-duty use. Hand-held push button pendant control with an 8 foot cord comes standard. Powerful 110V 1-phase motor and pump assembly offer years of easy functionality. Captured rollers reduce the risk of injury. Chip -resistant powder coat finish. 1-Year Limited Warranty.



Features About This Item

1. Hydraulic scissor lift table with electric motor for lifting and lowering heavy materials

2. Red powder-coated steel frame for resistance to wear and corrosion

3. 2,200 lb. load capacity with 48" x 28" platform

4. Service range of 9.5" to 36.25"
5. Canadian CAS certified motor, Phase 1, Duty S1 (CONT Continuous Duty), 2 HP, 110 V, 60 Hz

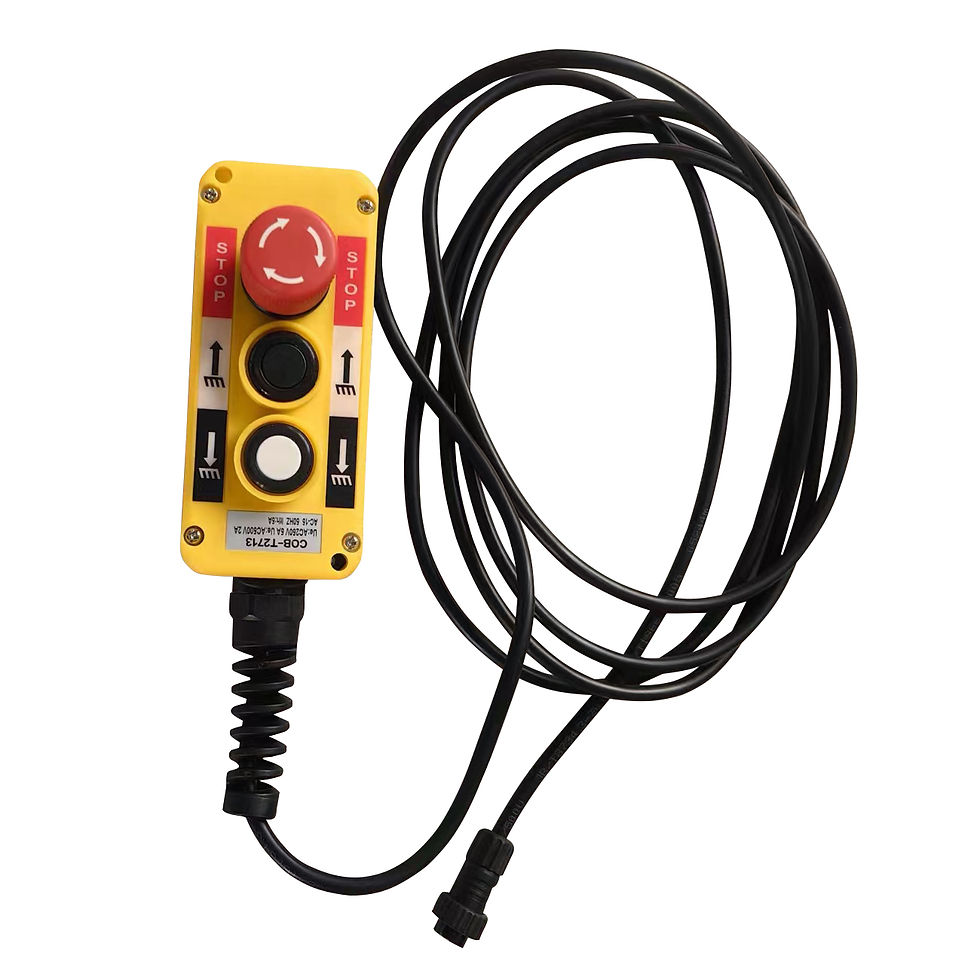

6. Hand control with an 8 foot cord and aviation plug comes standard (Optional Foot Pedal Control And Wireless Control Can Be Ordered From Our Factory)

7. Four-sided electric toe-guard is designed to promote employee safety

8. Build-in electric toe-guard wire is designed to prevent cut during operation

9. Hydraulic pump station contains a fan and a temperature sensor controller to improve stability

10. Mechanical explosion-proof hydraulic Cylinder (Electromagnetic Explosion-Proof Cylinder Can Be Ordered From Our Factory)

11. All electrical equipment's enclosure rating is higher than IP44; Motor IP54

12. The bending steel base instead of welding provides reliable heavy-duty use

13. The lift comes with scissors which is thicker and wider than average to support loads





Product Details

Load Capacity2,200 lb
Lift MechanismElectric-Hydraulic
Phase1
Platform Length48 in
Platform Width28 in
Lift Table Platform StyleFixed
Lift Voltage110V
Up Speed Seconds20~25
Frame MaterialSteel
Horse Power2 HP
IncludesControl Cord; Hand Control; Molded Edge Platform; Power Cord
Lifting Height Max.36.25 in
Lifting Height Min.9.5 in
Country of OriginChina

Electric Hydraulic Scissor Lift Table, 2,200 lb. Capacity, 48" x 28" Platform

SKU: PAKHWBG102848
$2,893.99 Regular Price
$2,300.00Sale Price
