Product Description |

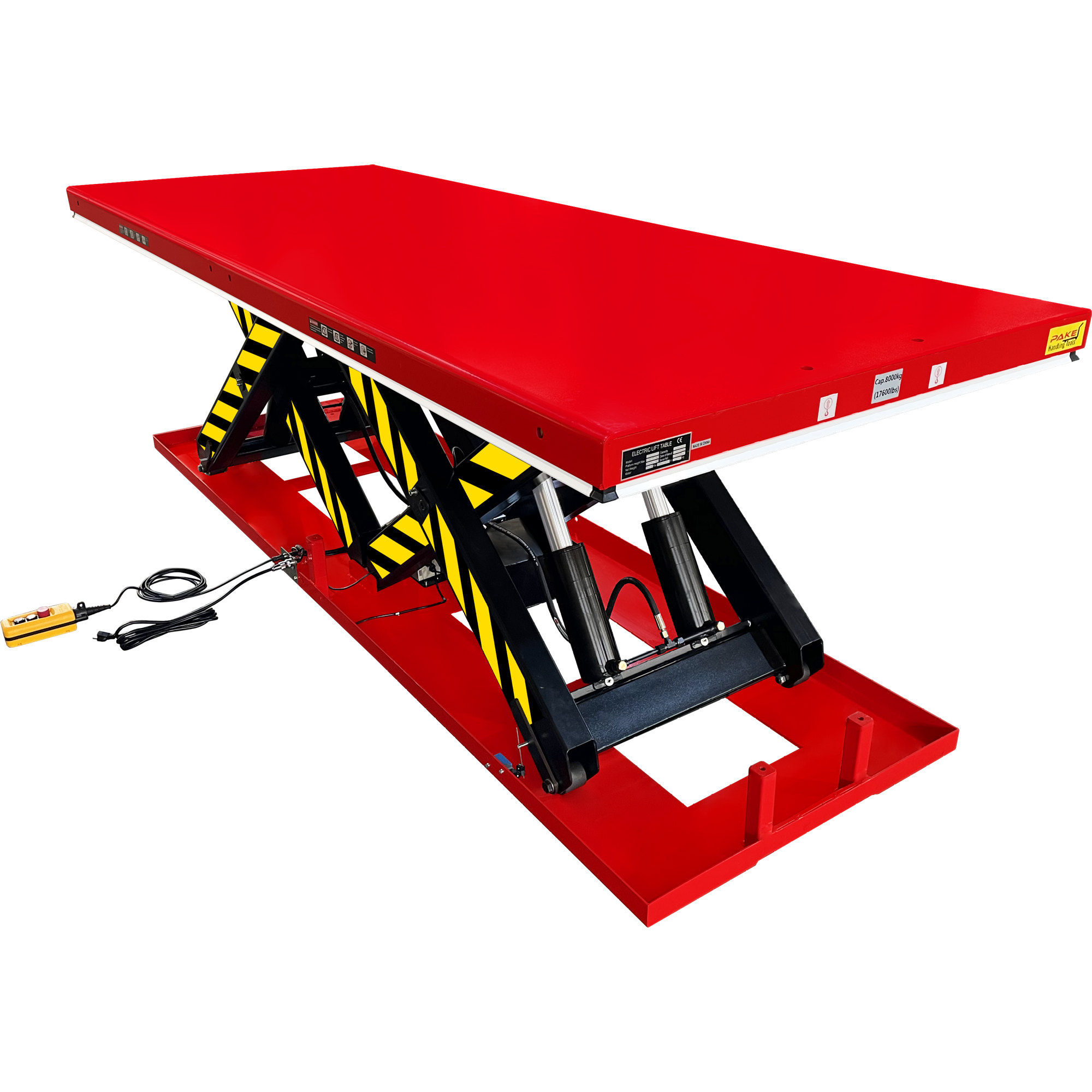

The Pake Handling Tools electric hydraulic Tandem Lifting Table with hand control is a cost effective solution for helping to reduce worker strain in the warehouse. The lift table is designed to promote employee safety by lifting loads to a comfortable working height. The lift features tandem two scissors for heavy-duty support. Hand-held push button pendant control with an 8 foot cord comes standard. Powerful 110V 1-phase motor and pump assembly offer years of easy functionality. Captured rollers reduce the risk of injury. Chip -resistant powder coat finish. |
Features |
1. Hydraulic double scissor lift table with electric motor for lifting and lowering heavy materials, 17,600 lb. load capacity with 118-1/2" x 47-1/7" platform, Service range of 9.35" to 39.45". Red powder-coated steel frame for resistance to wear and corrosion |
2. Red powder-coated steel frame for resistance to wear and corrosion |
3. Canadian CAS certified motor, Phase 1, Duty S1 (CONT Continuous Duty), 3 HP, 110V |
4. Hand control with an 8 foot cord and aviation plug comes standard (Optional Foot Pedal Control And Wireless Control Can Be Ordered From Our Factory) |
5. Four-sided electric toe-guard is designed to promote employee safety. Build-in electric toe-guard wire is designed to prevent cut during operation |
6. Hydraulic pump station contains a fan and a temperature sensor controller to improve stability |
7. Mechanical explosion-proof hydraulic Cylinder (Electromagnetic Explosion-Proof Cylinder Can Be Ordered From Our Factory) |
Data Sheet |
|
Load Capacity | 17,600 lb |
Lift Mechanism | Hydraulic |
Phase | 1 |
Platform Length | 118-1/2 in |
Platform Width | 47-1/7 in |
Lift Table Platform Style | Fixed |
Lift Voltage | 110V, 2.2kw |
Up Speed Seconds | 58~63 |
Frame Material | Steel |
HP | 3 |
Includes | Control Cord; Hand Control; Molded Edge Platform; Power Cord |
Lifting Height Max. | 39.45 in |
Lifting Height Min. | 9.35 in |
Country of Origin | China |
Package size | 120x49x15 in |
Net weight | 1683 lb |
Shipping Dimensions | 120x49x15 in |
Shipping Weight | 1727 lb |
