Product Description

The Lift Table is equipped with an electric linear actuator for accurate positioning. Its linear actuator design prevents the platform from drifting down, a common issue with traditional hydraulic lift tables. Powered by two 12V DC batteries, the scissor lift table includes an on-board charger, a hand controller, and a battery charge indicator. The elevating cart boasts a sturdy steel construction and moves effortlessly on two rigid and two swivel medical standard rubber casters.



Features

  • Capacity: Can handle loads up to 400 lbs.
  • Size: Platform dimensions of 35" length x 24" width.
  • Height: Adjustable from 16" when lowered to 50.4" when raised.
  • Material: Constructed with durable steel for long-lasting use.
  • Power: Powered by two 12V DC batteries with a 24DC-12A capacity.
  • Features: Includes an on-board charger, hand controller, and battery charge indicator.
  • Mobility: Moves smoothly on four medical standard rubber caster wheels, two of which swivel with brakes, and two are rigid.



IMPORTANT BATTERY CHARGING NOTE: The battery must be charged within 3 months of storage to prevent self-discharge. If the battery is not charged within 3 months of storage, permanent loss of capacity may occur. If the powered product is going to be stored and/or not in regular use, the batteries must go through a full charge cycle every month to ensure battery life and duty cycle.



Data Sheet

Model

PAKLT-YL-LA180D

Loading Capacity

400 lb

Platform Length

35 in

Platform Width

24 in

Lowered Height

16 in

Raised Height

50.4 in

Material Type

Steel

Lift Type

Linear Actuator

Lifting Time without Load

32~36s

Lifting Time with Rated Load

40~46S

Max. Working Current

4.2A

Working Cycle / Chartered

110-220

Max.Linear Actuator Force ( N)

12000

Caster Diameter

5 in

Wheel Configuration

(2) Swivel with Brake, (2) Rigid

Wheel Type

Rubber

Overall LxWxH

39x24x39 in

Item Weight

200 lb

Package Dimension

40x24.5x38.5

Package Weight

205 lb

Shipping Dimensions

42x24x43 in

Shipping Weight

226 lb

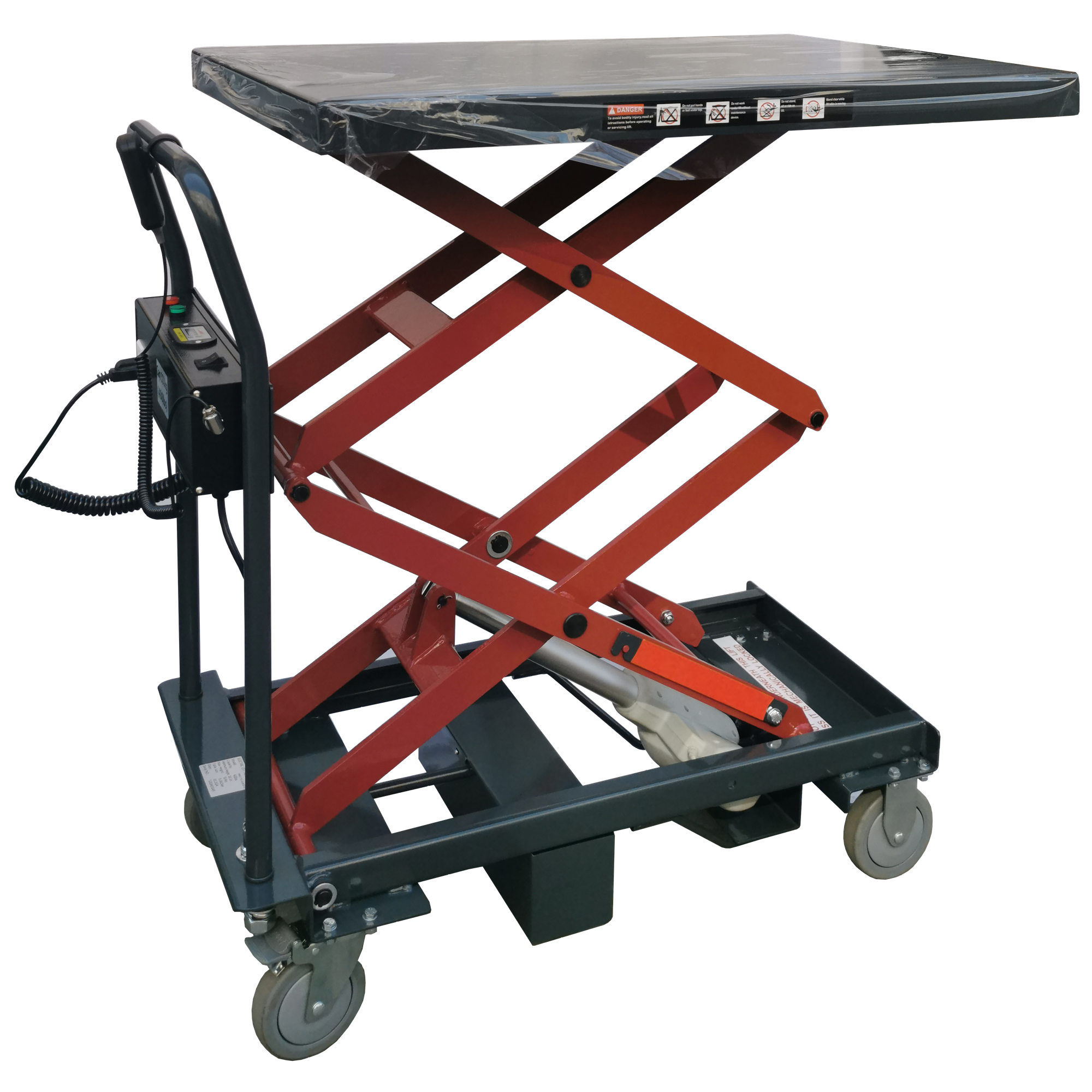

Linear Actuated Elevating Cart, 400lb. Cap., 35" X 24", Lifting Height 16"-50.4"

SKU: PAKLT-YL-LA180D-02
$2,099.99Price
