Product Description

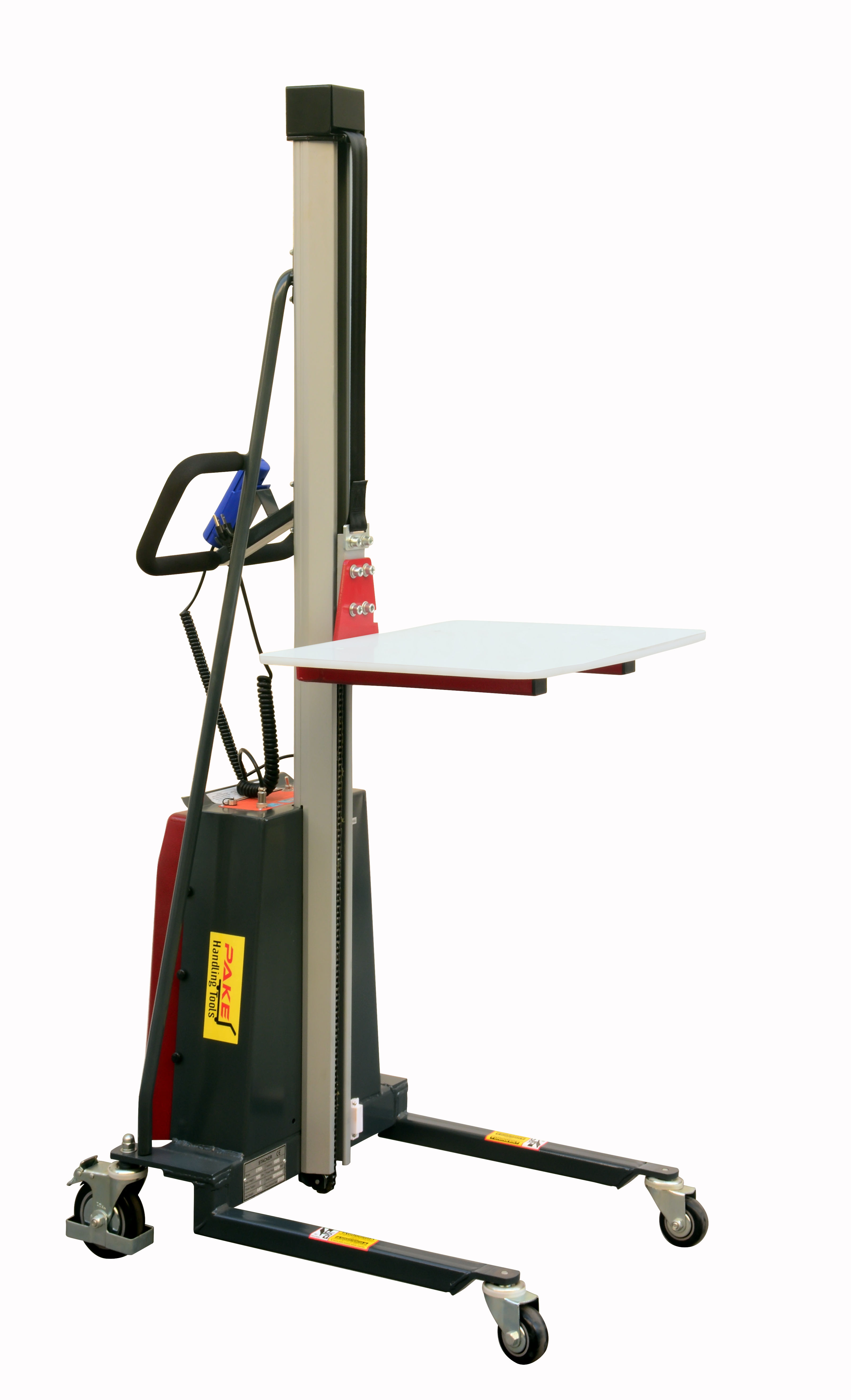

The convenient, Pake Battery-Operated Platform Lift Truckis easy to transport the merchandise around the job site.The lift is powered by two 12V 12Ah maintenance-free batteries. They are designed to be long-lasting and reliable, allowing the lift to be used approximately 80-100 times after a full charge. The batteries can be easily recharged using the included 110V AC charger. Features include push button remote control, Limit Switch, PVC Platform, Swivel Casters and Safety Belt.

Features
Lifting Height: 5-1/2" to 59"
Platform Size: PVC 23-2/3" * 18-1/2"
Lifting/Lowering speed: 2.17"/s
Lightweight, highly maneuverable

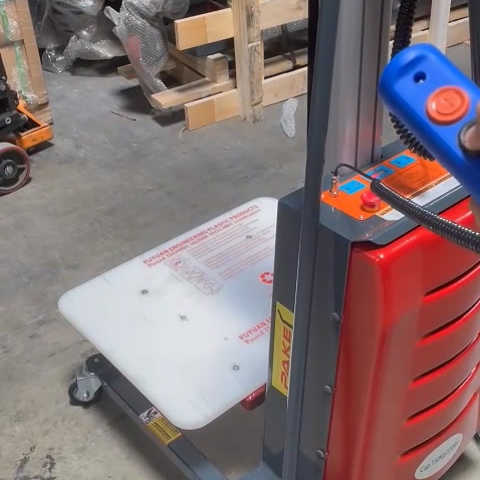

Features include push button remote control
New limit switch: to avoid exceeding the raise range and cut off power.
Battery Indicator and New On/Off Switch
Non-marking polyurethane 5" steer wheels with brakes and 3" load wheels.
Ideal for use in narrow aisles and confined spaces
Recommend to use in S3 - Intermittent periodic duty
110VAC charger
Can be used 80-100 times after fully charged

Warning
IMPORTANT BATTERY CHARGING NOTE: The battery must be charged within 3 months of storage to prevent self-discharge. If the battery is not charged within 3 months of storage, permanent loss of capacity may occur. If the powered product is going to be stored and/or not in regular use, the batteries must go through a full charge cycle every month to ensure battery life and duty cycle.

Data Sheet
SKU
PAKWP02
Item
Powered Platform Lift Trucks, 330lb, 59" Lift Height
Loading Capacity
330 lbs
Platform Dimensions
23-2/3 in W x 18-1/2 in D
Lift Height Range
5-1/2 in to 59 in
Overall Height
71-1/4 in
Overall Length
34-1/3 in
Overall Width
23-2/3 in
Wheel Configuration
(2) 5" Rear Swivel with Brake; (2) 3" Front Swivel
WHEEL Tread Material
Polyurethane
Base Inside Width
19 in
Base Outside Width
22-1/4 in
Leg Length
20-1/2 in
Leg Height
4-3/5 in
Type
Battery Powered
Voltage
24V
Lift Time
32 Seconds Loaded; 26 Seconds Unload
Lift Control
Remote Push Button
Lift Mechanism
Chain
Frame Material
Steel Frame, PVC Platform
Batteries
(2) 12V 12Ah Maintenance Free
Item Weight
140 lbs
Overall Dimension
34-1/3 x 23-2/3 x 71-1/4 in
Shipping Dimension
48 x 40 x 76 in
Shipping Weight
197 lbs
